Inhaler for Horses Equosonic Private Starter Package

Ultrasonic nebulizers are used for nebulizing inhalation solutions in the field of respiratory applications. Aerosol generation occurs through mechanical vibrations at a frequency of 1.7 MHz, which are produced in distilled water (contact water). These vibrations are created by piezoceramic components that convert electrical energy into mechanical vibrations.

An aquapak® system is used within the contact liquid to physically separate the nebulizer from the nebulization unit. The generated vibrations are transmitted through its base and then spread through the inhalation liquid.

Fine capillary waves form on the surface of the NaCl or inhalation solution, which intensify with increasing excitation frequency and enable the formation of an aerosol.

The ultrasonic nebulizers of the equosonic series produce particle sizes of approximately 0.5 to 5 µm with a nebulization rate of up to 5.5 ml/min. For average-sized horses, a rate of about 4 ml/min is often used. The generated aerosol can distribute in different areas of the respiratory tract depending on particle size, breathing technique, and application situation.

Compared to technically simpler compressor nebulizers, ultrasonic nebulizers operate with high-frequency mechanical vibrations and thus produce a fine aerosol spectrum. Over 95% of the surface of the respiratory system is located below the larynx. The bronchial system has extremely fine branches with very small diameters. Therefore, particle size plays a crucial role in the distribution of aerosol particles within the airways.

In the scientific literature, particle sizes under 5 µm are described in connection with applications where aerosol particles can also reach deeper areas of the respiratory system. This means that a large proportion of the generated aerosol particles should be in the range below 5 µm.

The package includes:

• Equosonic Private

• 6 meters of tubing for 3 sets of 2 meters each

• Extra-large inhalation mask 12 liters or normal 9 liters or small 7 liters (please select)

• 2 inhalation capsules

• Disinfectant cleaner 1000 ml

• Pharmaceutical salt approx. 100 g

• Pharmaceutical saline 2% 1000 ml

• Sampling spikes and syringes

• 3 pcs. connection hose (fan to inhalation capsule)

Technical data:

• Particle size 0.5-5 microns (fully lung-penetrating)

• Nebulizer output approx. 4 ml/min

• Power approx. 80 watts

• Operating voltage 230 volts 50 Hz

What you still need to get started:

• approx. 500 ml distilled water

Please select the correct mask size for your horse:

12l volume for very large horses Dimensions: 28 cm opening x 19.5 cm base x 29 cm height, opening circumference about 85 cm, base circumference about 61 cm, suitable for large horse breeds or short, powerful noses (Shire horses, etc.)

9l volume for normal horses Dimensions: 26 cm opening x 19 cm base x 24 cm height, opening circumference about 80 cm, base circumference about 58 cm, suitable for most horse breeds such as warmbloods, larger riding ponies, Haflingers, etc.

7l volume for small horses Dimensions: 23 cm opening x 17 cm base x 21 cm height, opening circumference about 72 cm, base circumference about 53 cm, suitable for small to medium ponies

Our ultrasonic nebulizers of the equosonic series (Private, Clinic) operate with a ceramic membrane vibration frequency of 1.7 MHz. This produces durable particles in a size range of 0.5 – 5 µm (microns).
Due to the high airflow speeds in the fine bronchioles, effective inhalation must be calm, i.e., with a low breathing rate. The animal should not be moved beforehand, and immediate movement after treatment is not advisable.

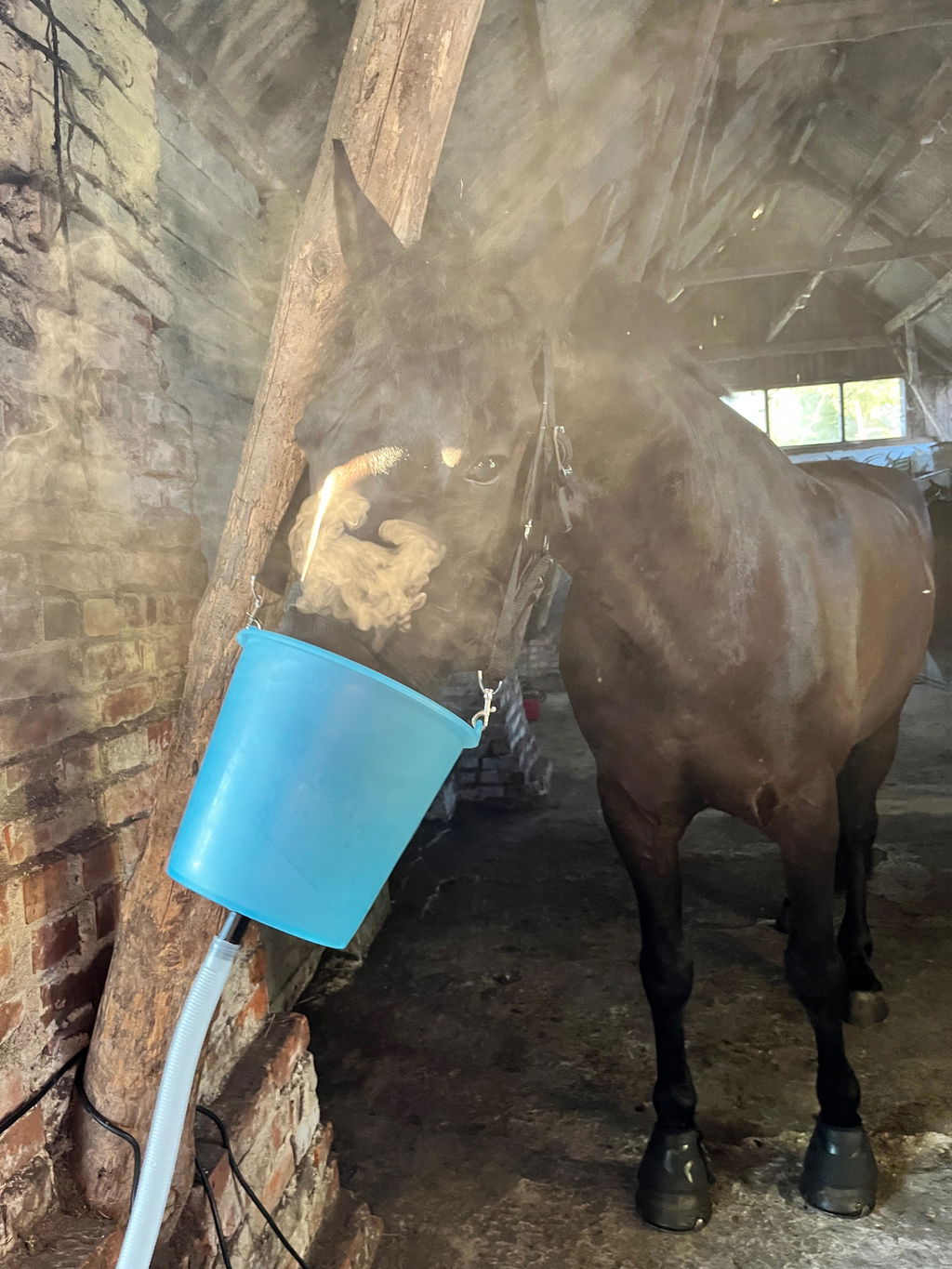

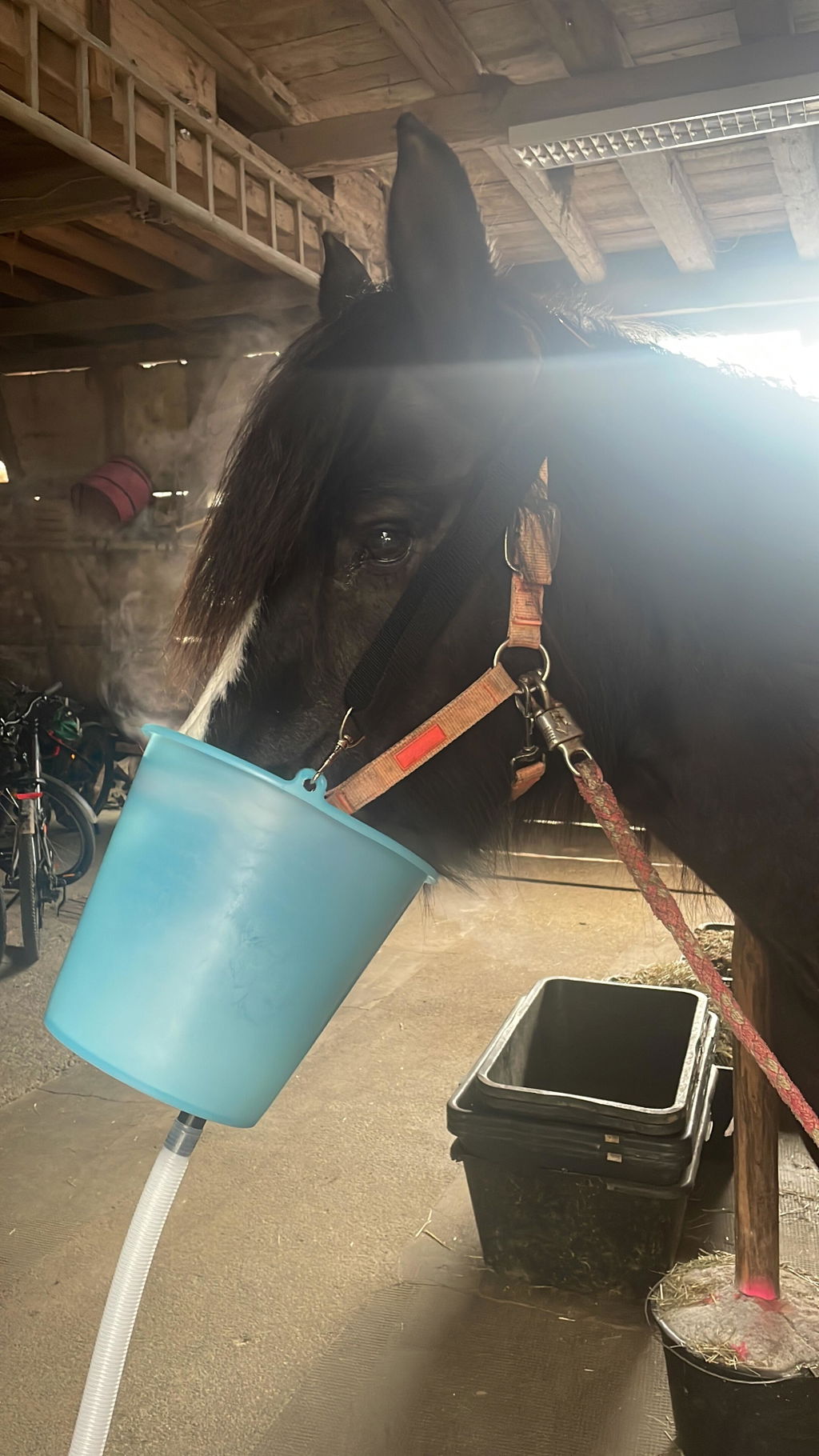

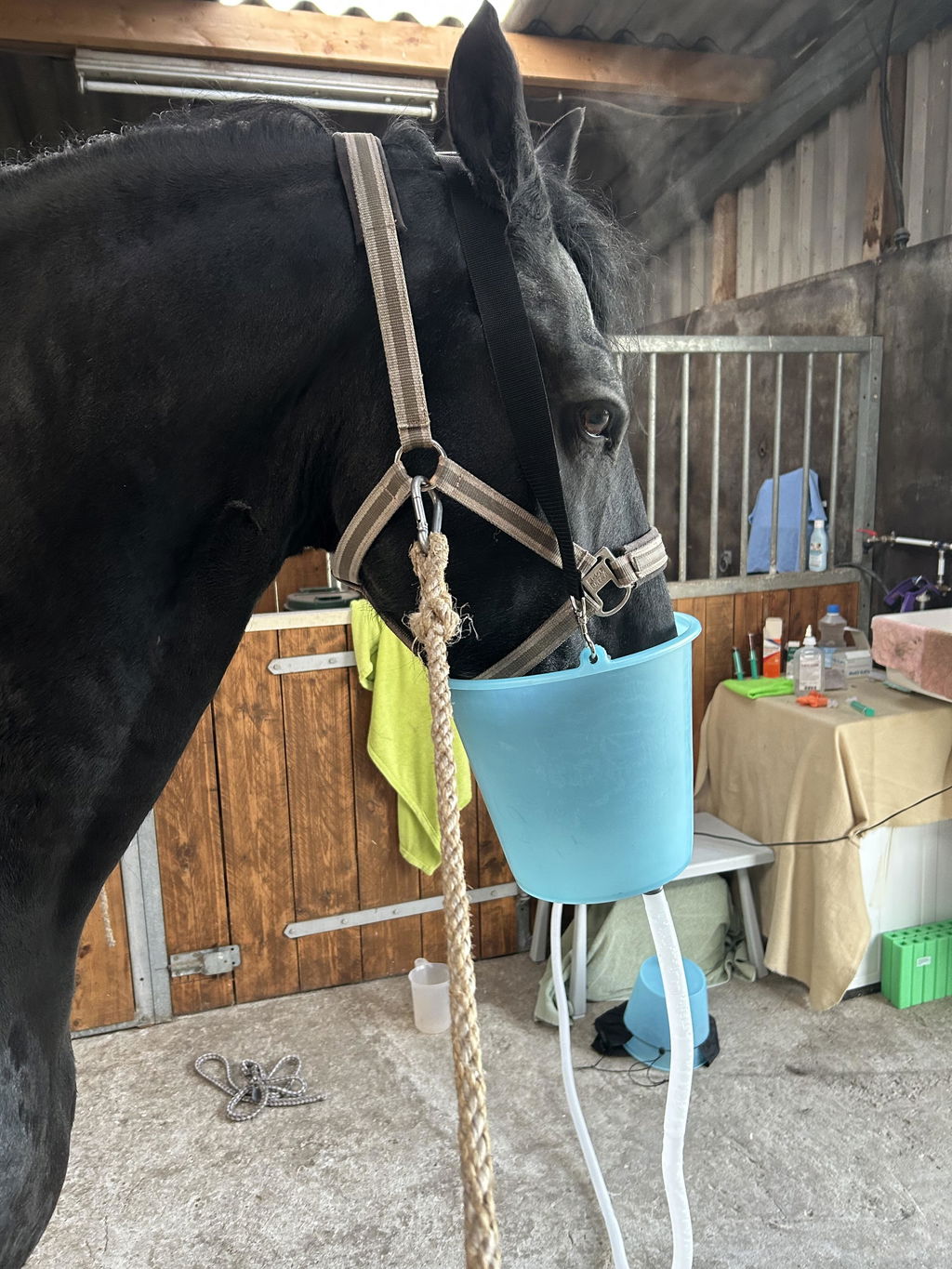

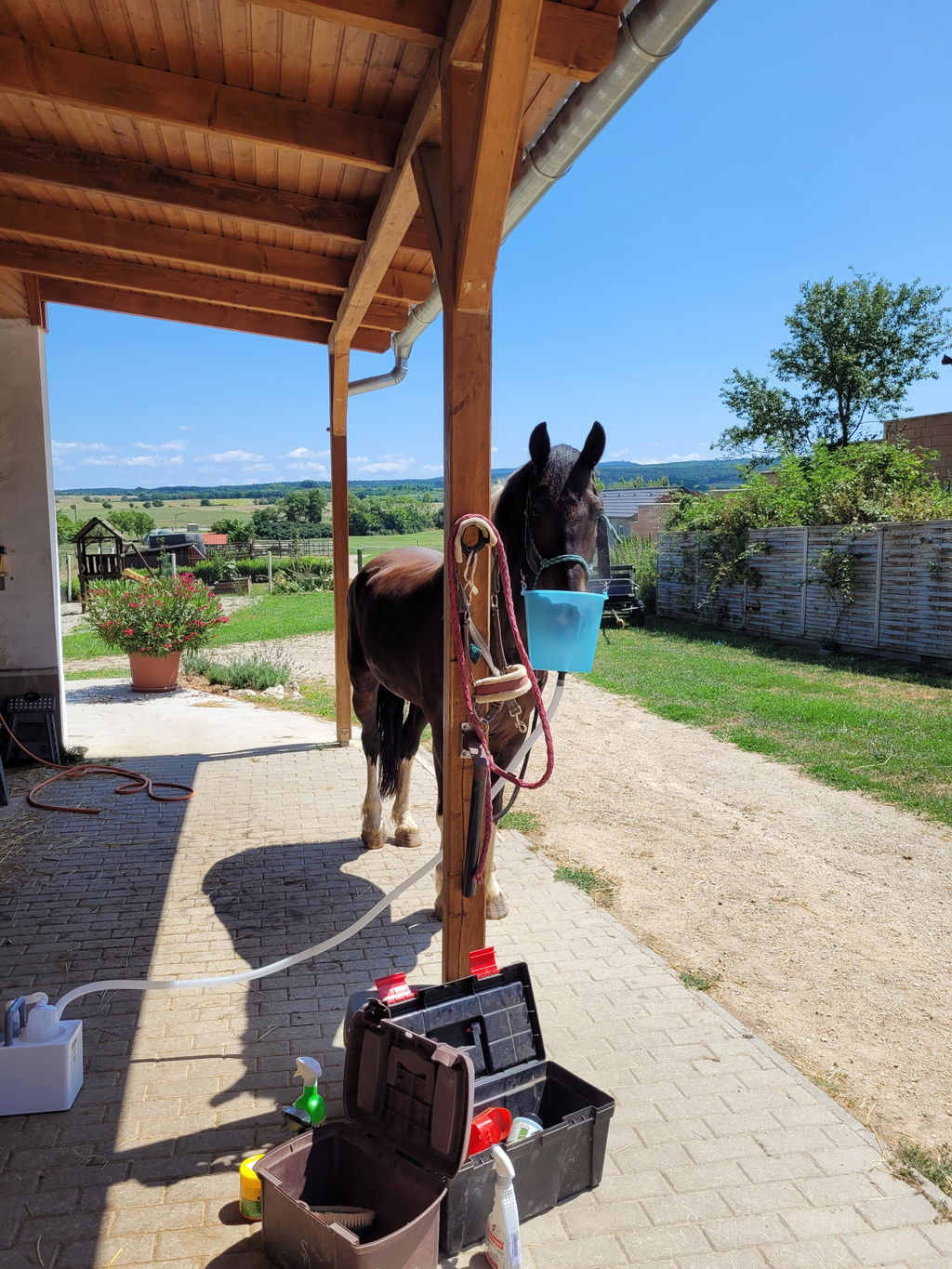

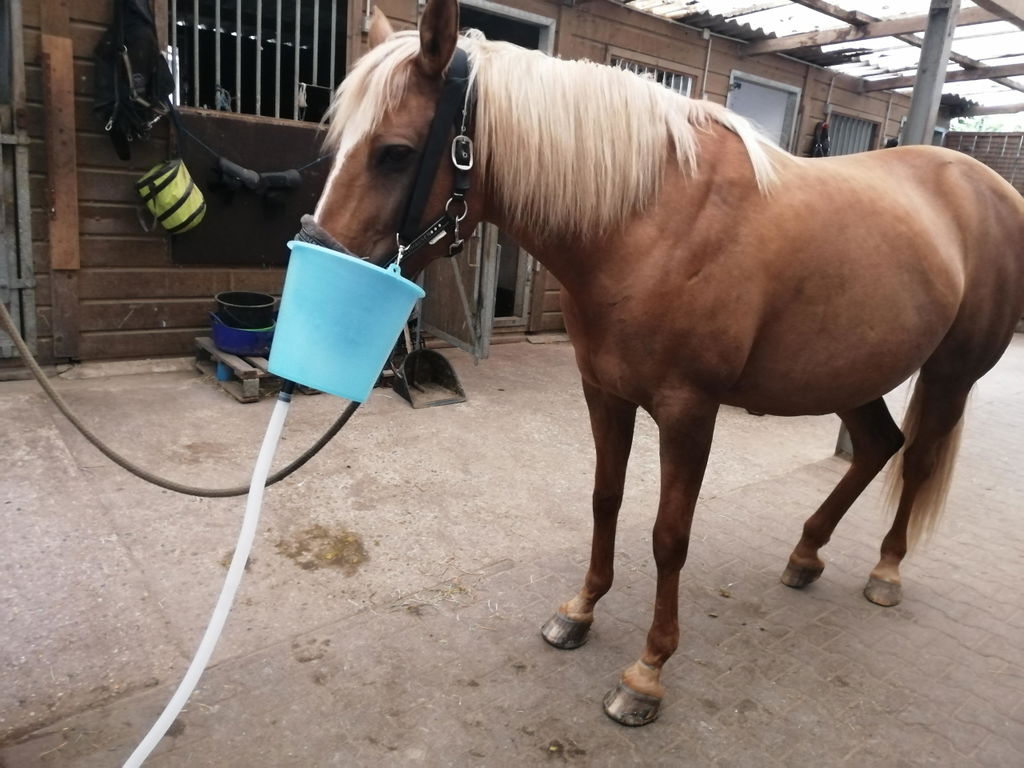

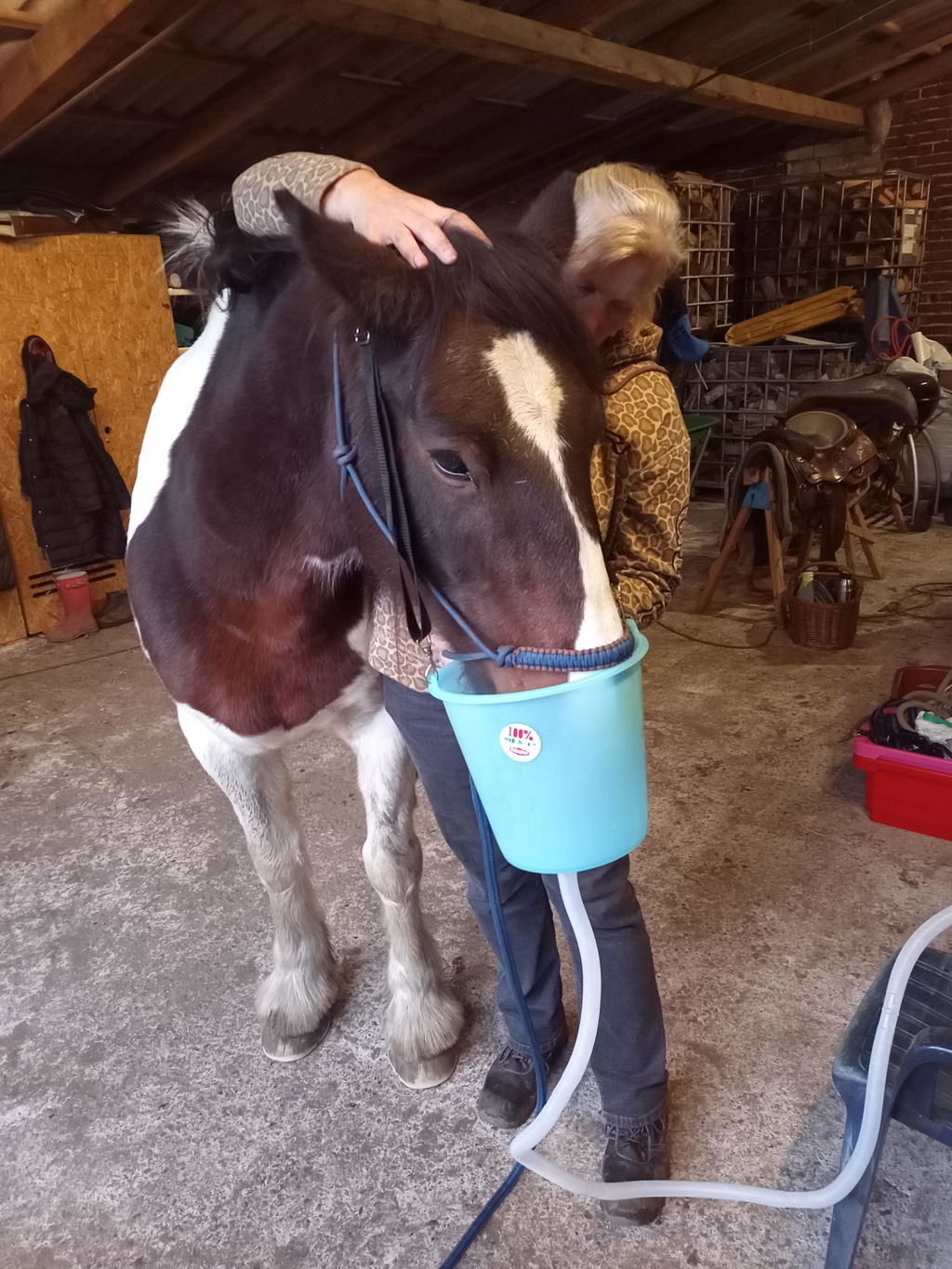

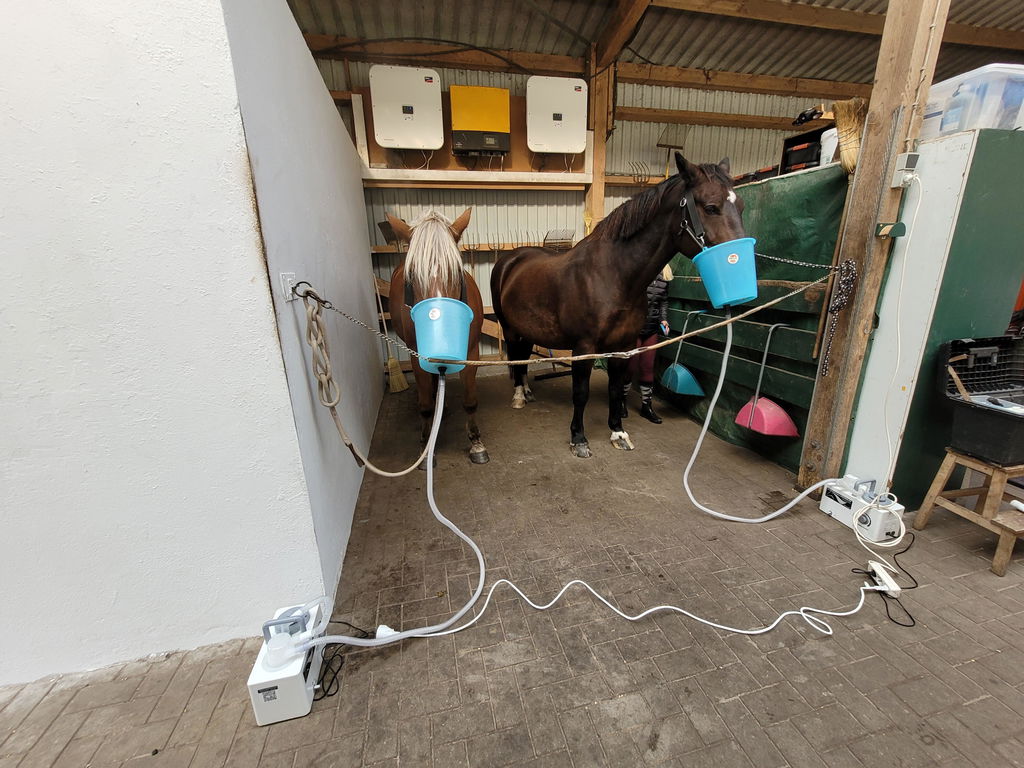

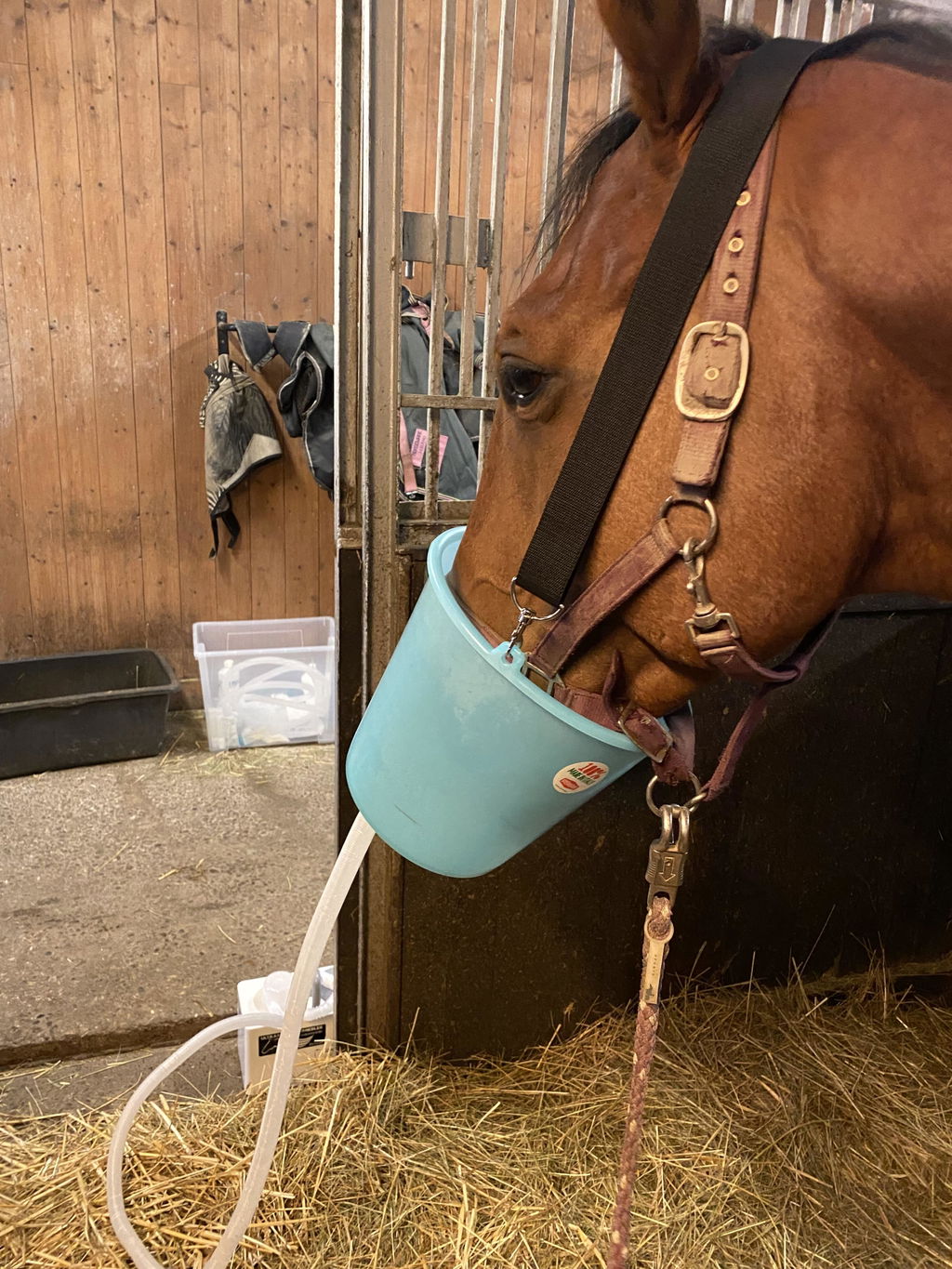

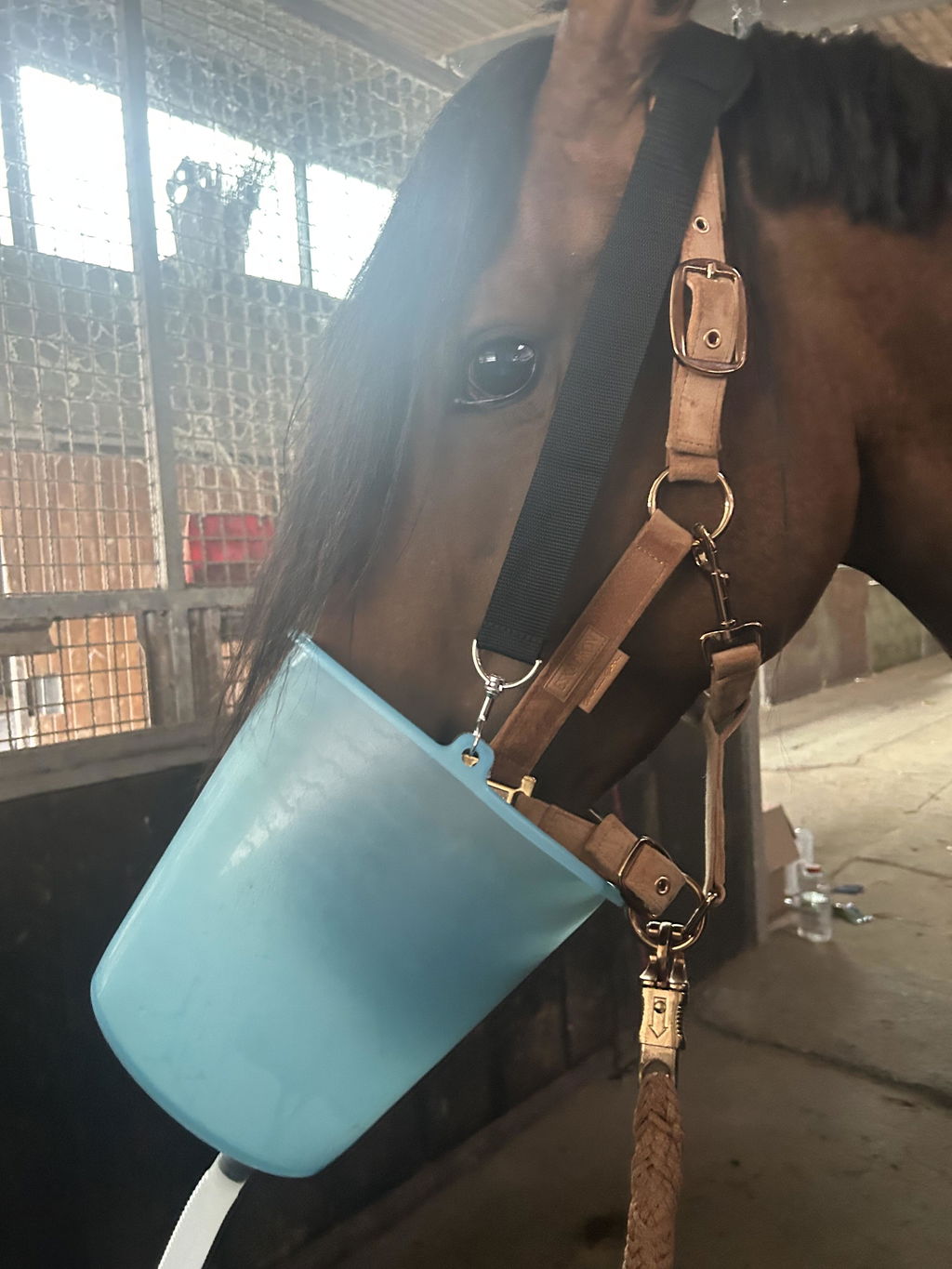

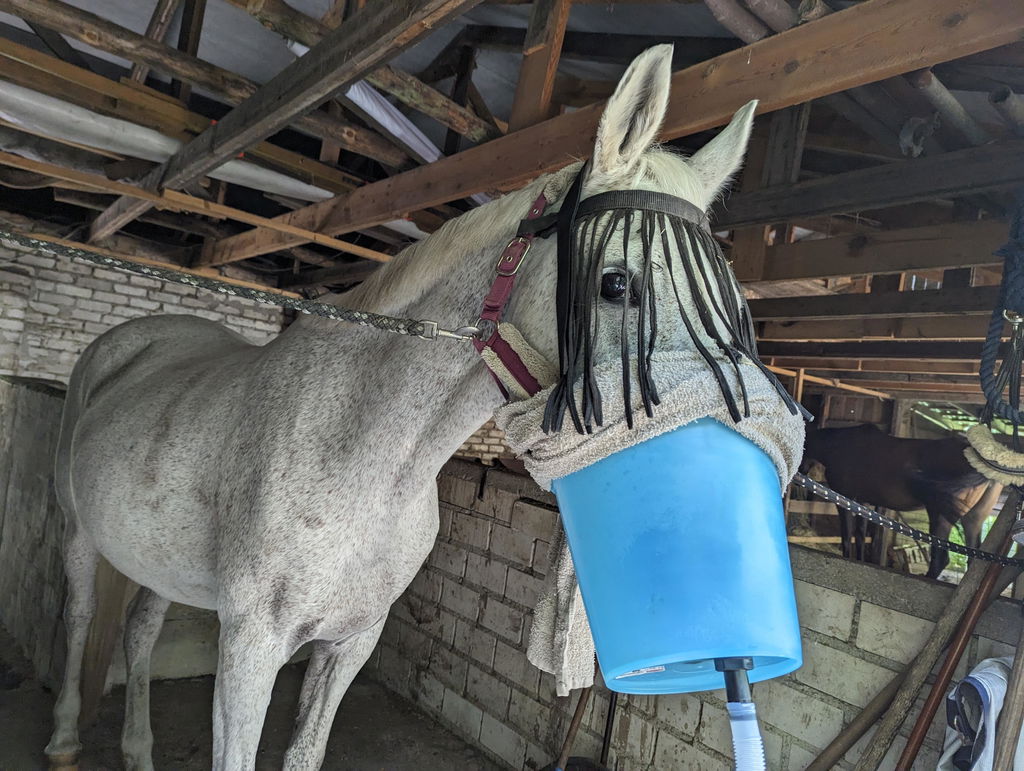

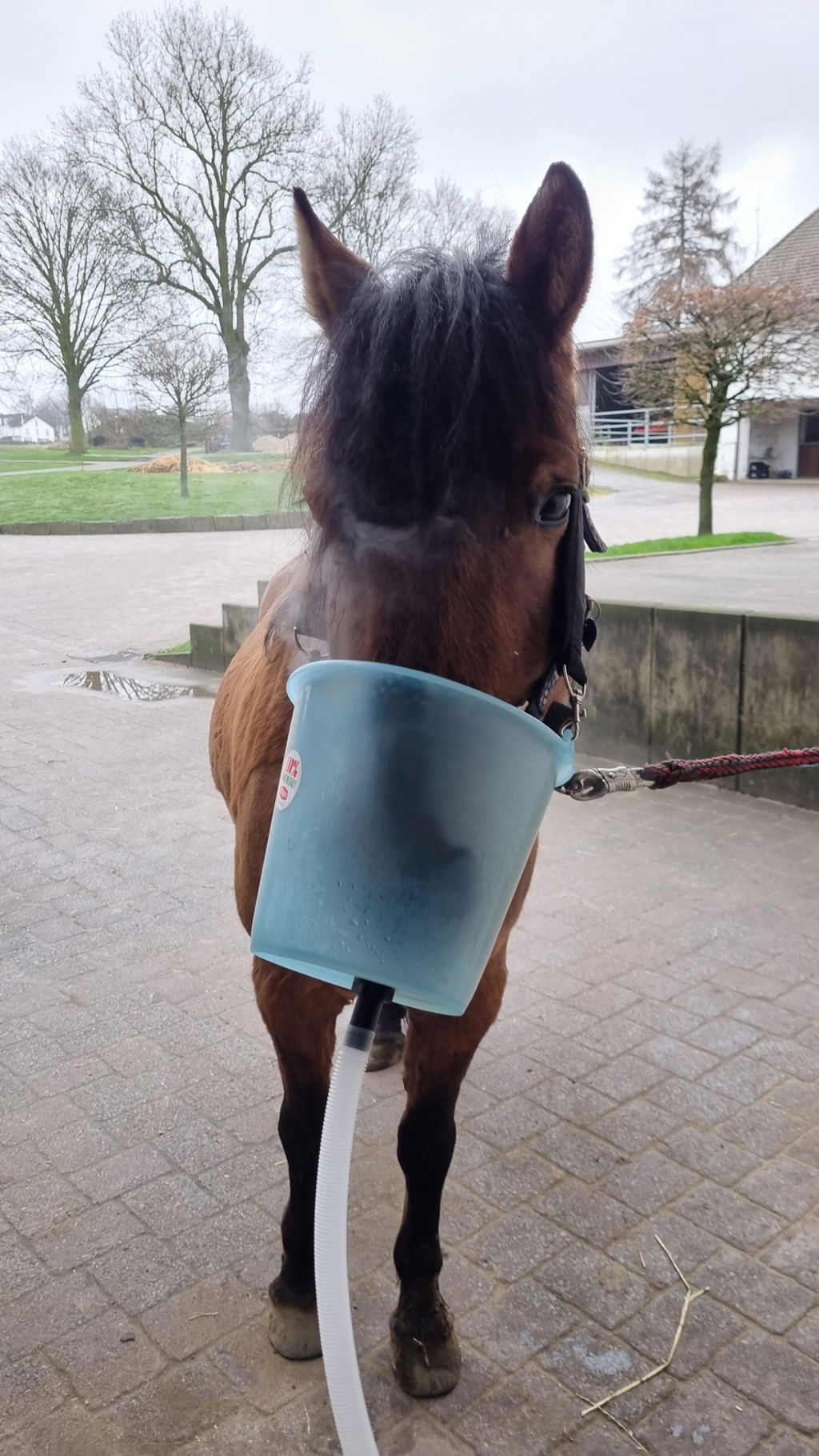

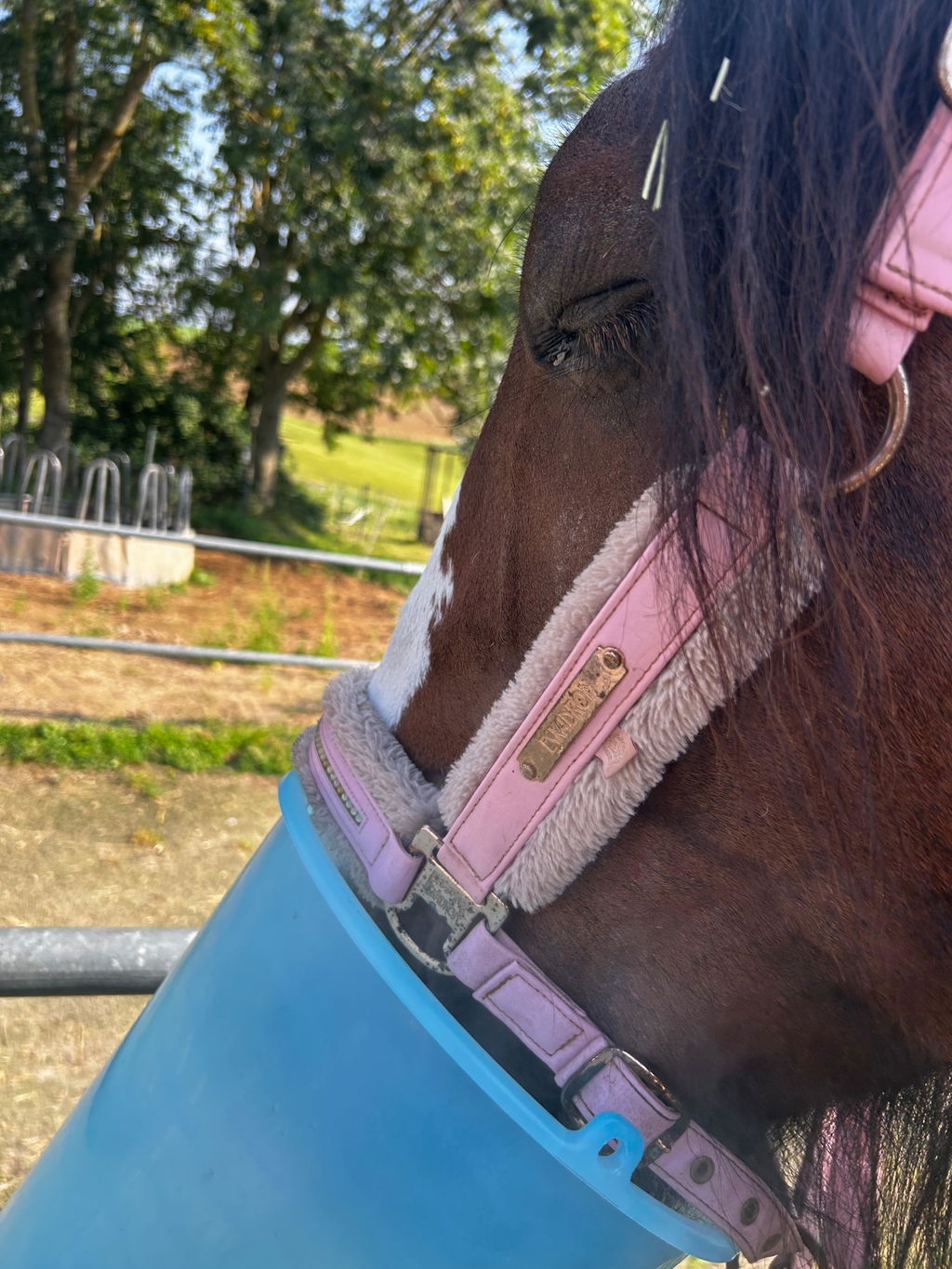

The open mask

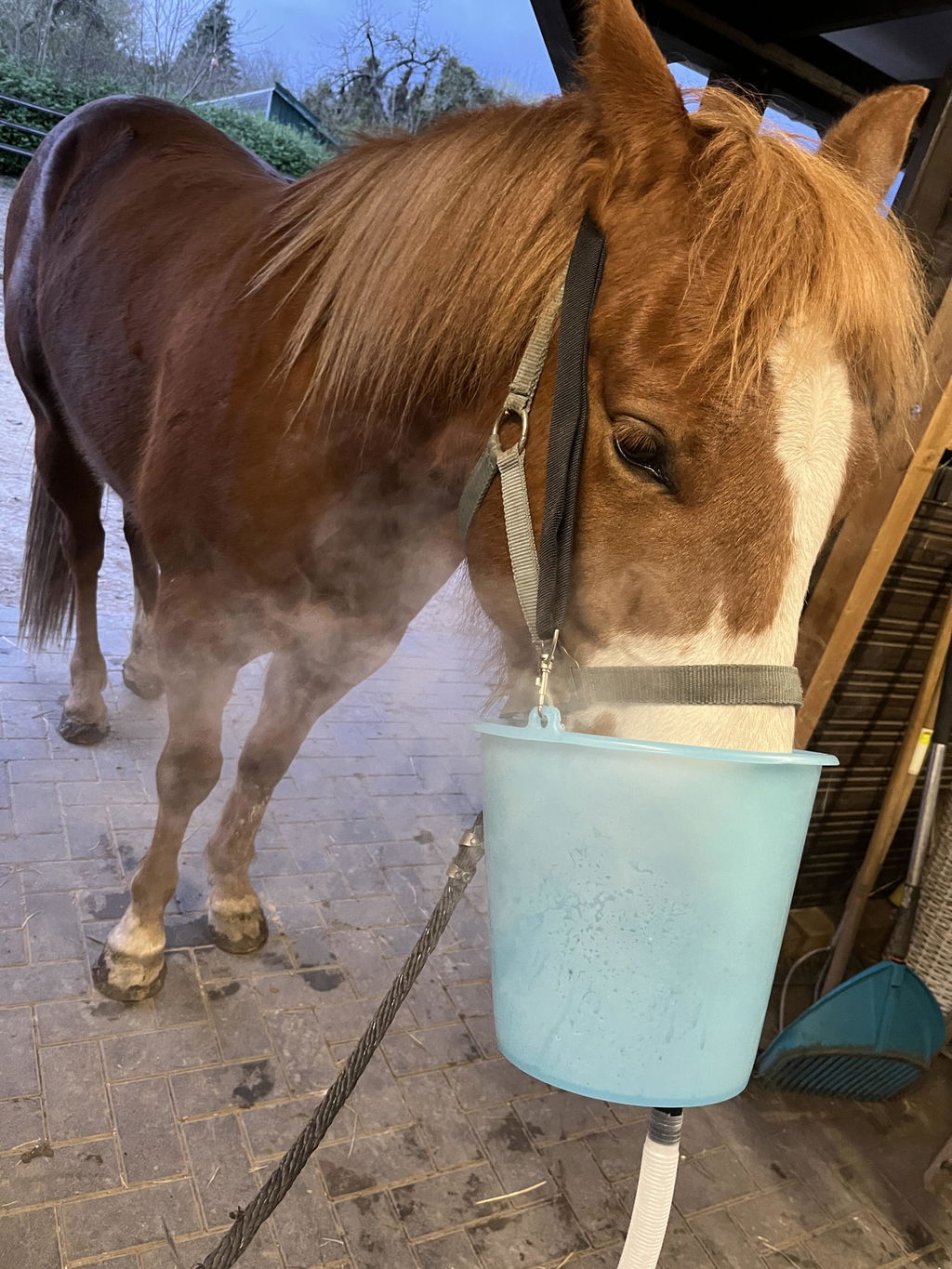

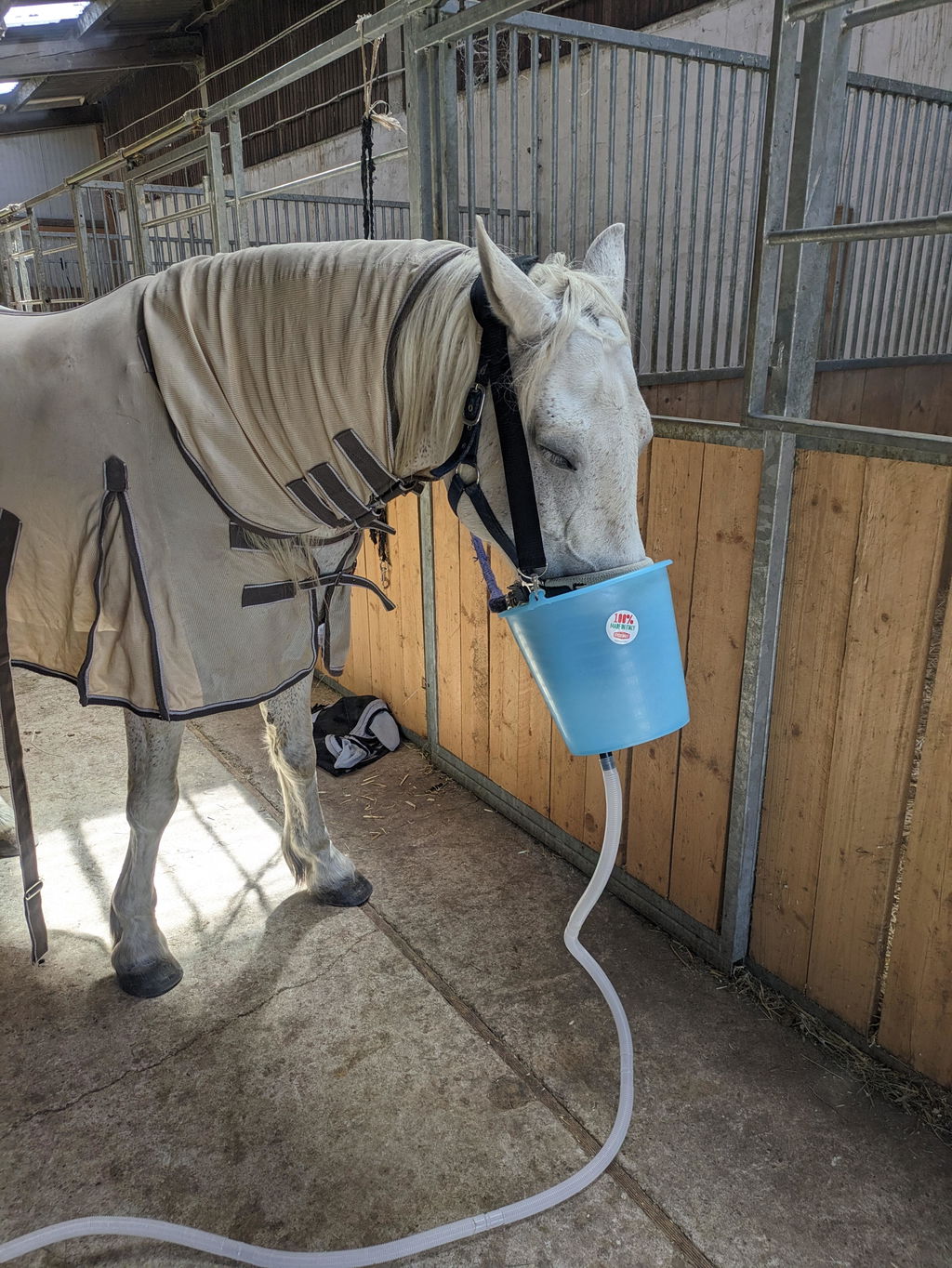

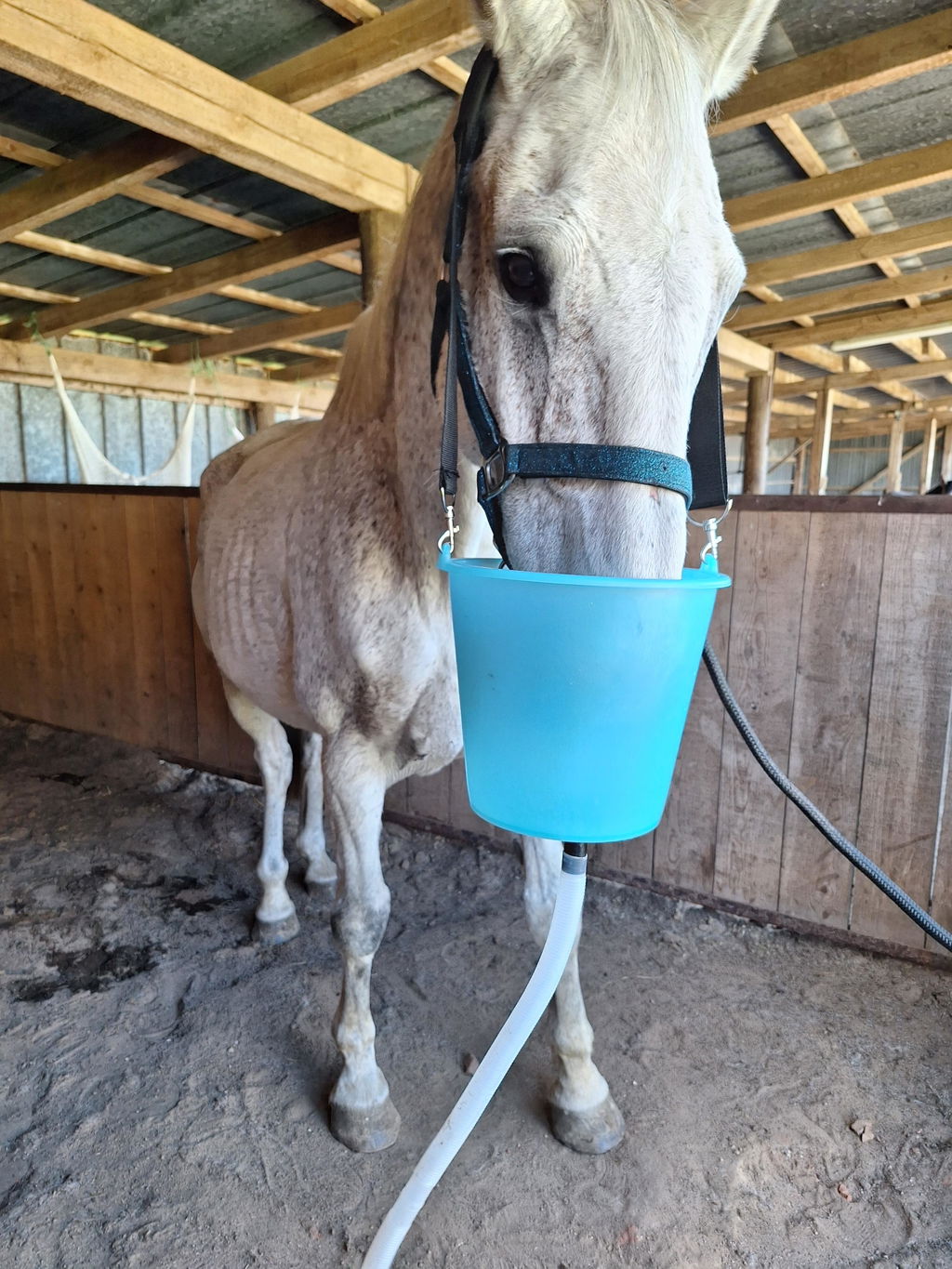

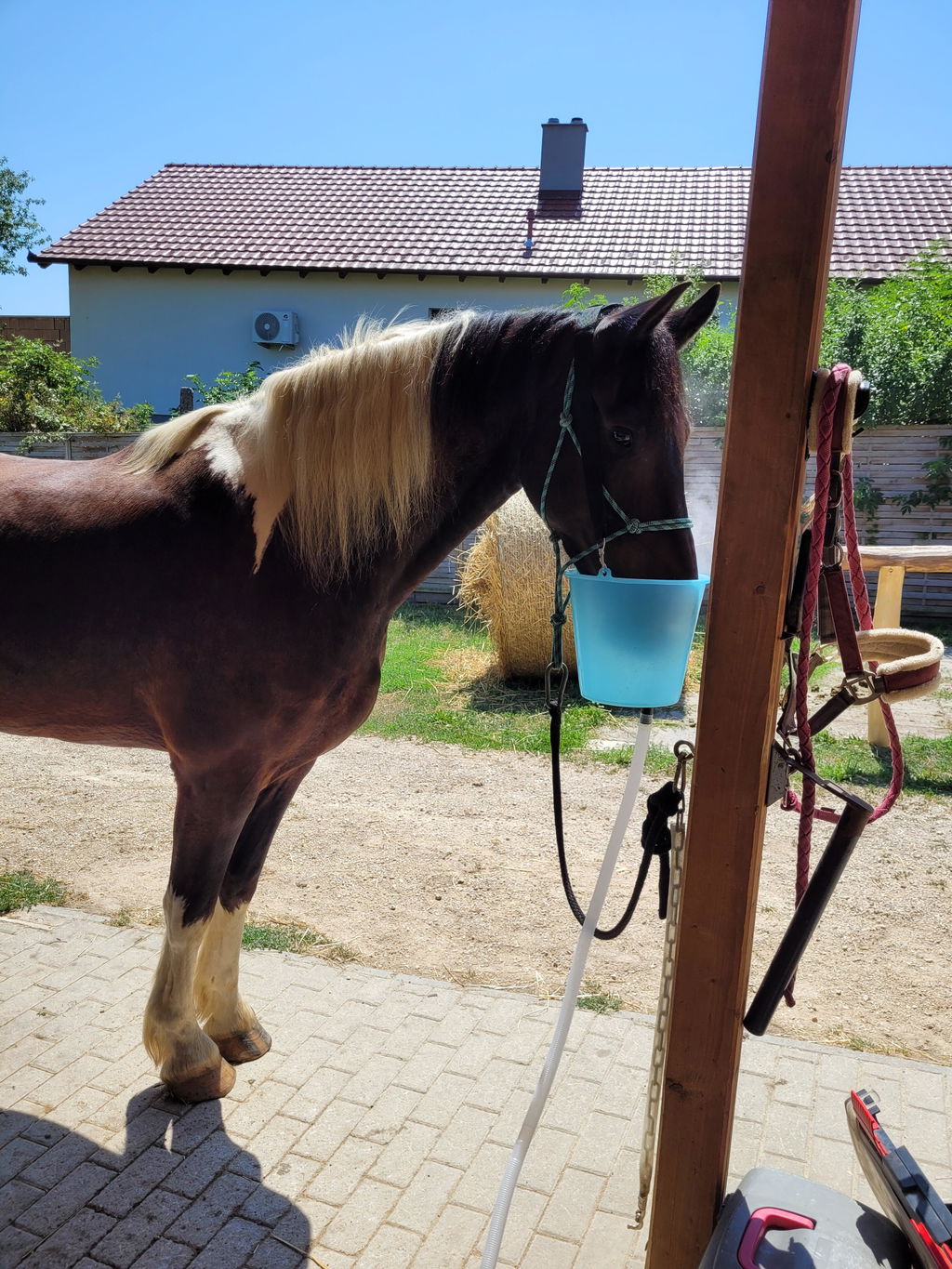

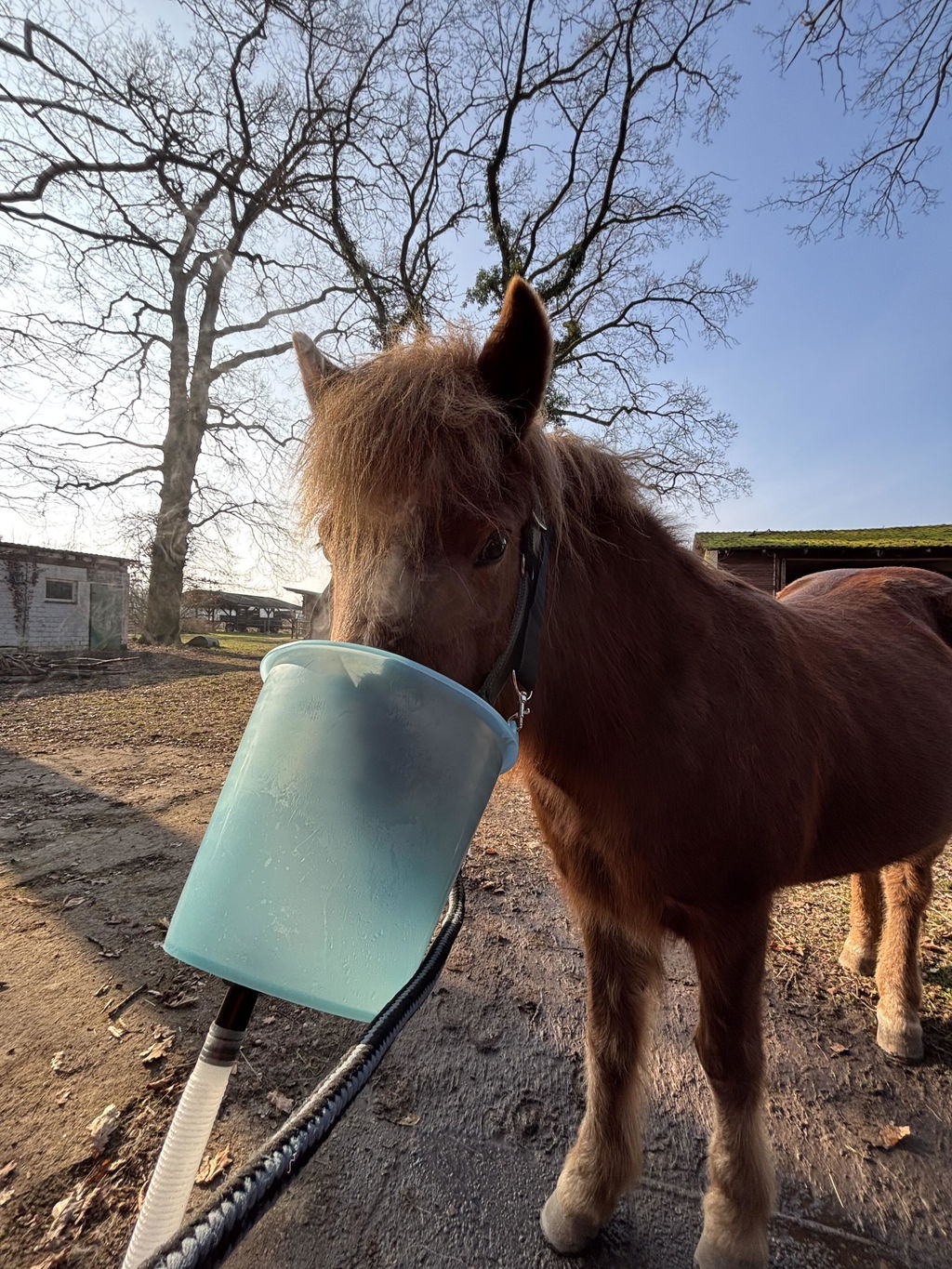

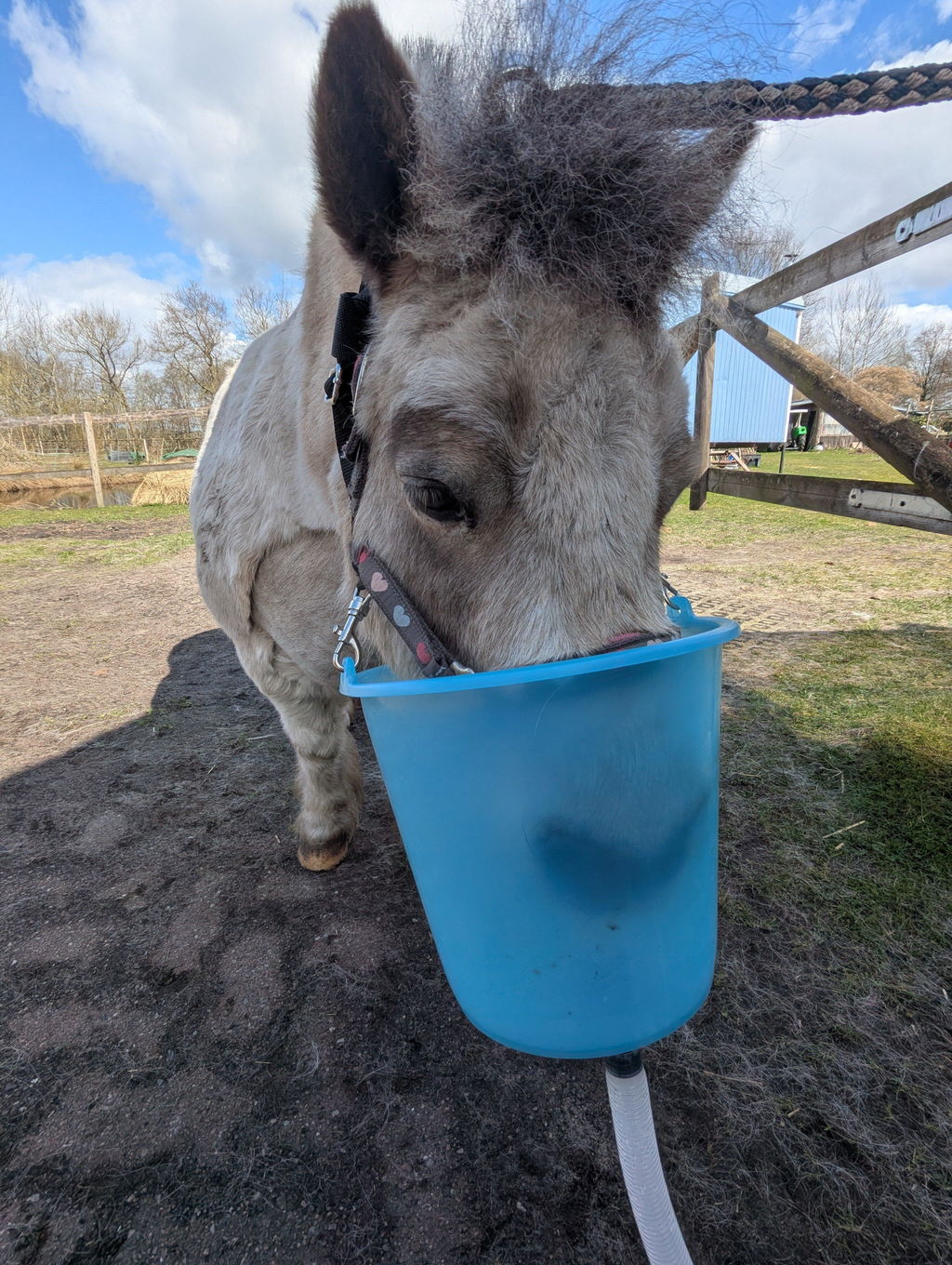

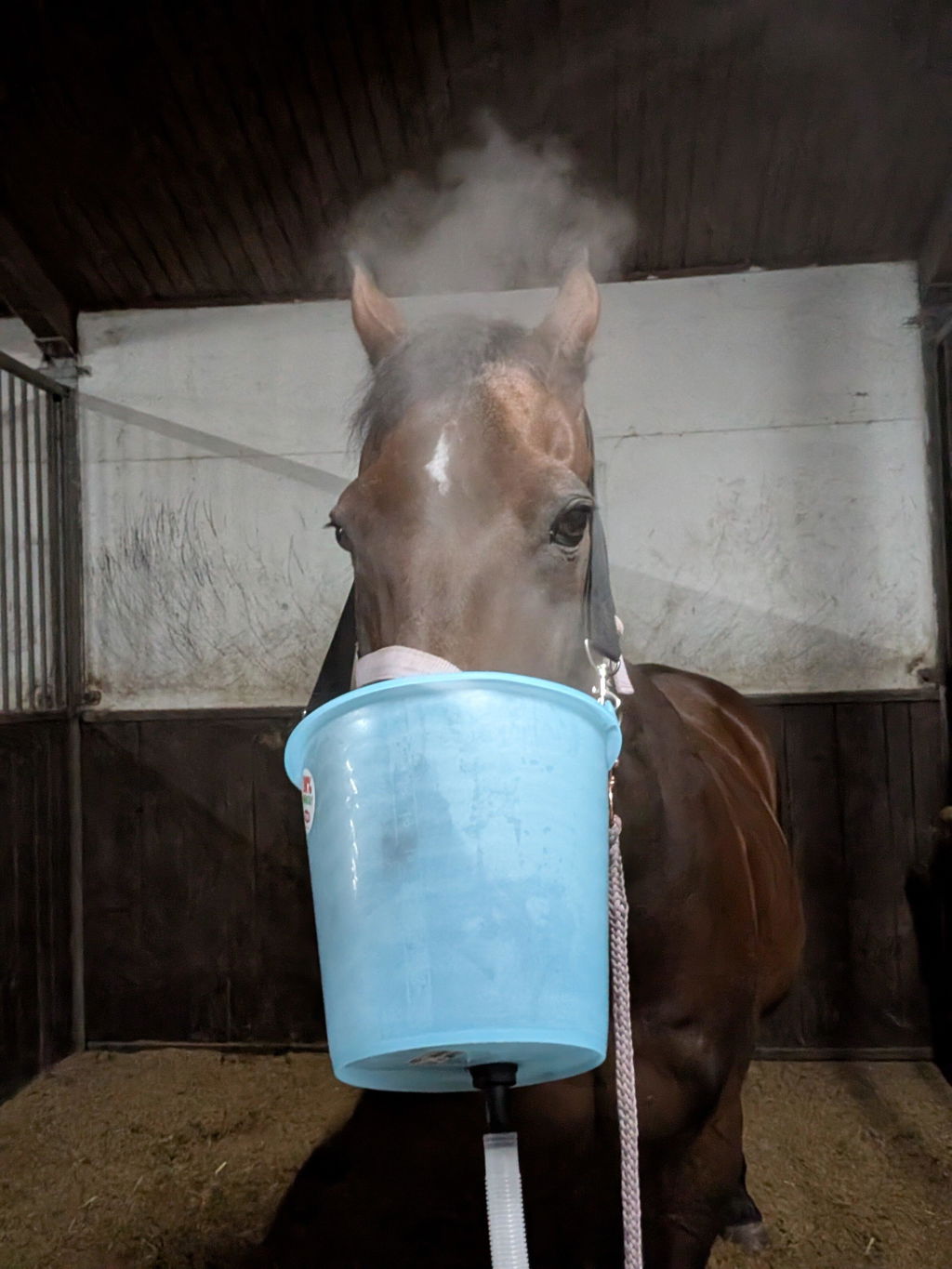

Our inhalation mask is made of high-quality, food-grade PE plastic in bucket shape and does not require additional valves. Unlike closed mask systems, the animal does not have to actively inhale the aerosol mist. Instead, the generated mist is continuously directed into the mask via a ventilation system.

The open system allows for the most natural and relaxed breathing possible during use. A calm breathing situation can help aerosol particles distribute evenly in the airways. Due to the lower breathing speed during relaxed breathing, fine aerosols can also reach deeper areas of the respiratory tract.

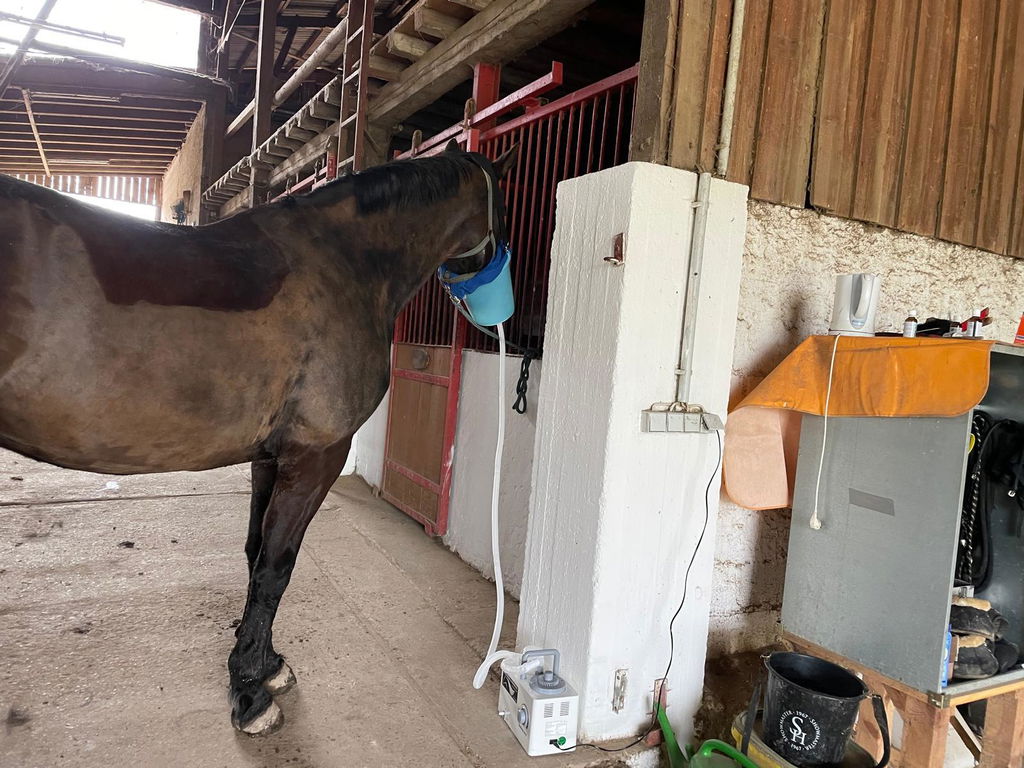

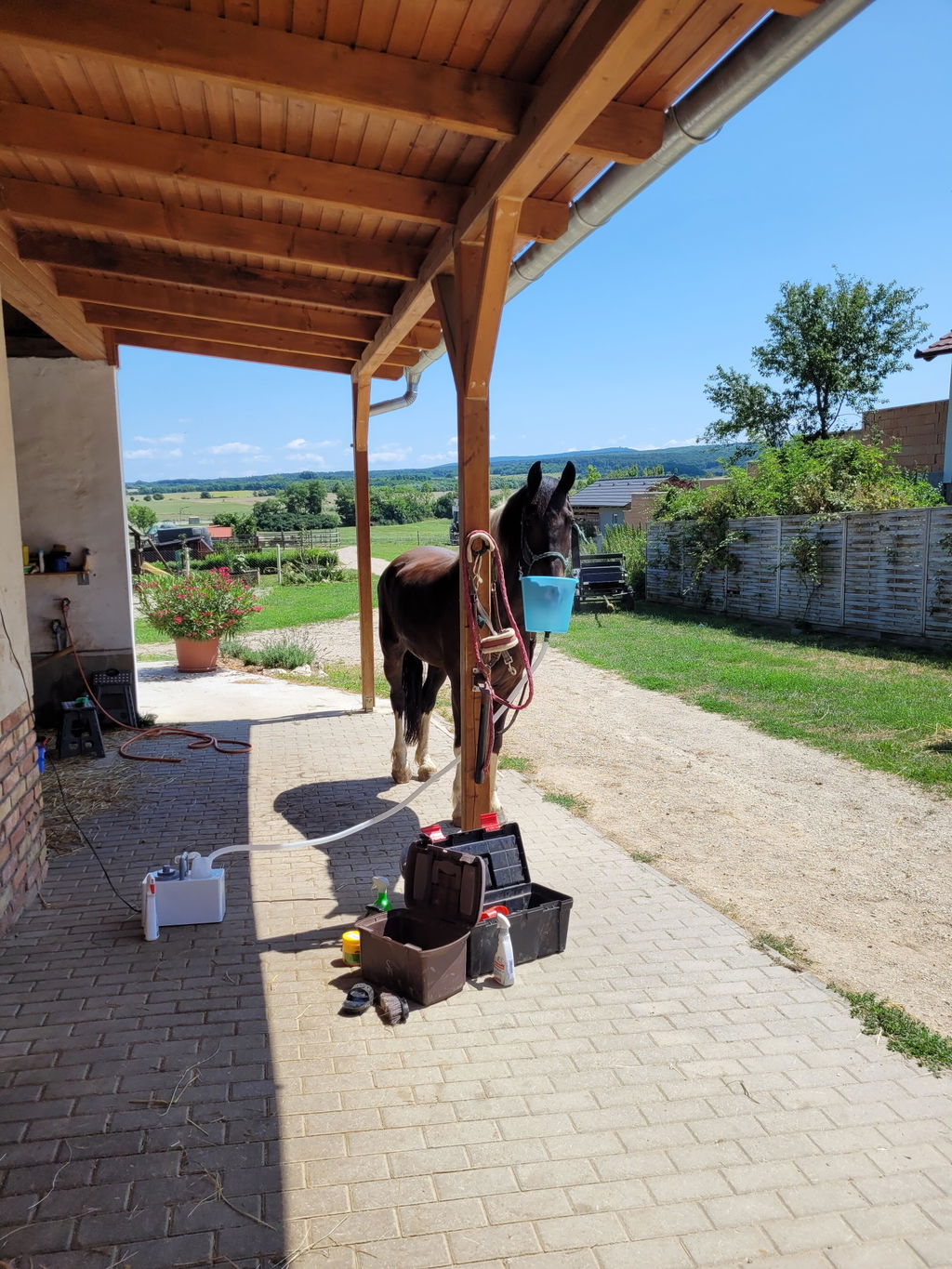

Our inhalers continuously introduce the aerosol into the mask while the horse can inhale and exhale the mist calmly.

Inhalation during movement

We do not recommend inhalation during movement. Physical activity often changes the breathing pattern to faster and shallower breathing. This can alter the distribution of aerosol particles within the airways.

For as even inhalation as possible, the horse should stand as calmly as possible during the application. Movement after inhalation is generally possible with some time delay. However, immediately after the application, a short rest period of about 15 minutes is recommended. Regular exercise is important for horses in general but should not be combined directly with inhalation.

Your statutory warranty rights naturally apply and are not limited by our voluntary guarantee.

Additionally, we provide a voluntary 12-month guarantee on the device from the date of purchase.

Ultrasound units as well as batteries are consumable and wear parts. Their lifespan depends on usage, care, charging behavior, storage, water quality, and the inhalation solutions used. Replacement may therefore be required sooner or later.

For consumable and wear parts, the previous usage period is taken into account proportionally within the scope of our voluntary guarantee.

A defect in a consumable or wear part is not automatically a warranty case. In the event of a defect notification, we will technically inspect the device. If a statutory warranty case exists, subsequent performance will be provided free of charge.

This electrical device must do not dispose of in household waste! Dispose of it separately at an authorized collection point for electrical equipment. Free take-back for private households is possible – ask about collection points near you.
